Specifications

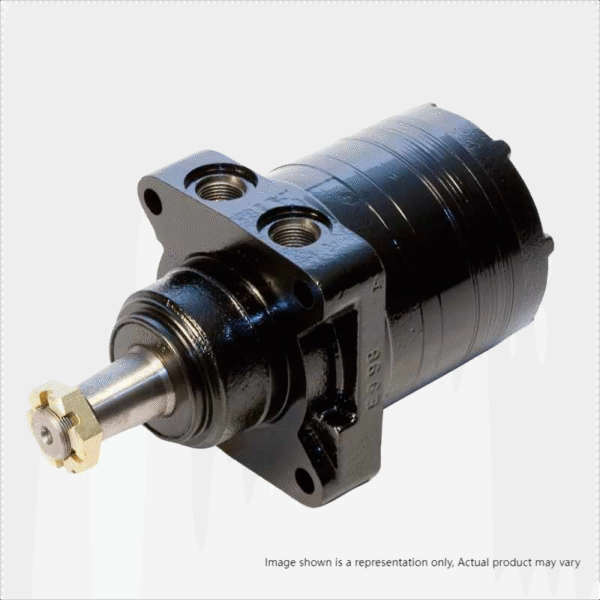

The TJ Series marries the TE Series drive train with a larger, heavier duty roller bearing and shaft. This compact, economical wheel motor has intermittent pressures to 190 bar and torques to 648 Nm. The shaft is 31.75 mm nominal.| Brand | Torqmotor | ||
| Displacement | Motor: 36 - 390 cm3/rev | ||
| Maximum Flow Rate | 40 to 75 Intermittent (35 to 60 Continuous) L/min | ||
| Minimum Starting Torque | 52 to 477 Intermittent (44 to 373 Continuous) Nm | ||
| Shaft Diameter | 31.75 Nominal (Other Sizes Available) mm |
| Body Material | Cast Iron | ||
| Maximum Pressure Differential | 120 to 190 Intermittent (85 to 140 Continuous) bar | ||
| Maximum Output Torque | 71 to 648 Intermittent (55 to 467 Continuous) Nm | ||
| Maximum Operating Speed | Intermittent Flow: 190 to 1160 RPM |
